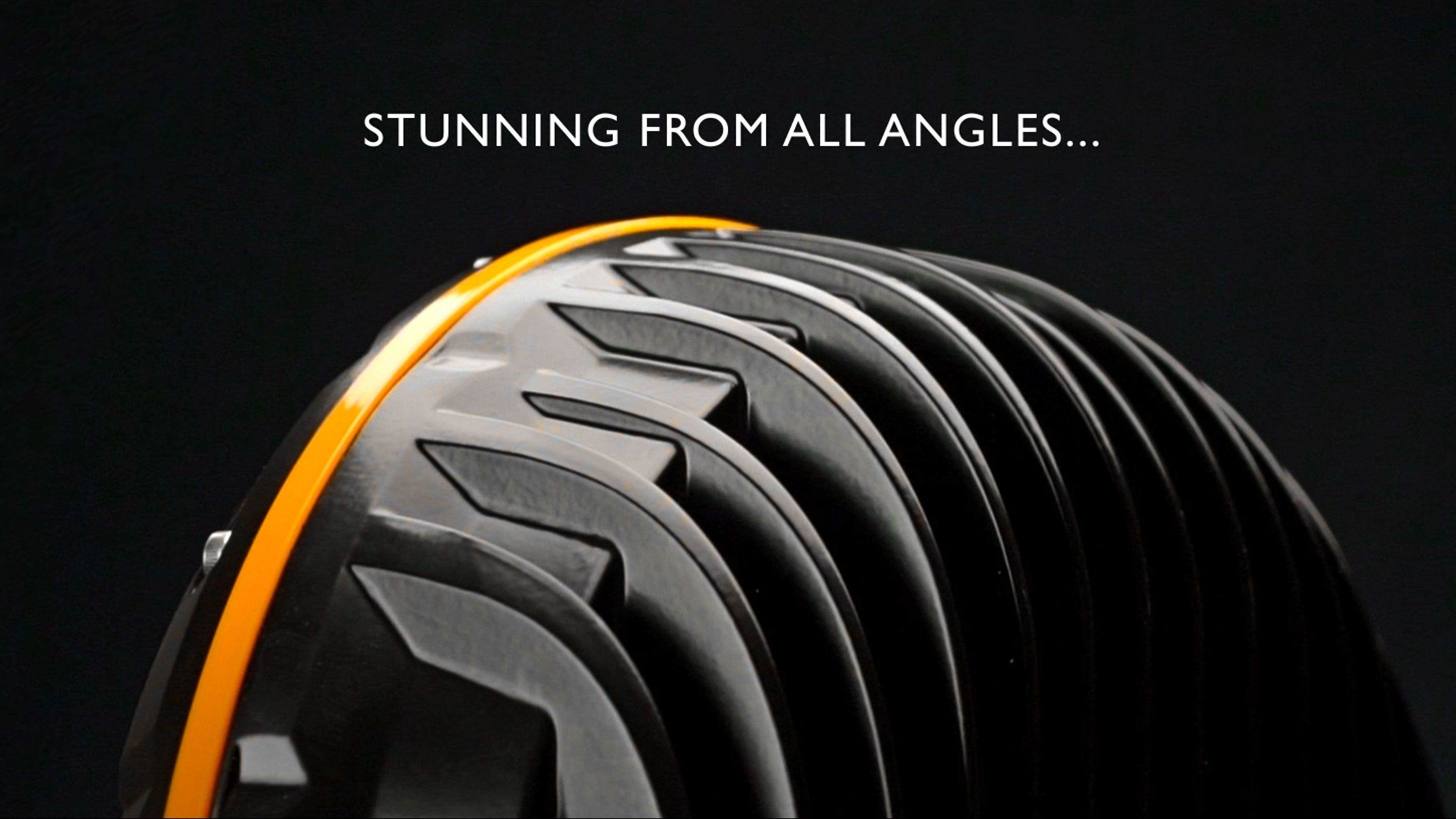

STEDI DESIGN LANGUAGE.
Some people call it the little things. For us, it is literally everything. We obsessed over even the most trivial geometries and design elements to achieve a visually stunning luminaire. The 4mm 304 Stainless steel bracket features our signature shoulder armor with laser-cut STEDI™ branding. A carefully considered orange rim surrounding the housing offers just the right amount of visual impact while ensuring that the overall look and feel play nicely equally on a Sandy Taupe Landcruiser as it will on Magnetic Gray Ranger.
LEGENDARY TYPE-X DNA.
It's been a few years since the inception of the original Type-X™. We’ve taken an already proven platform and completely redesigned it from the ground up. The 7" Type-X™ Sport features an increased optics depth of 35%, allowing for a perfectly collimated beam and the resultant increase in light intensity. The beam diameter strikes a sublime balance between width and throw, sending light right out to 895m. Four dedicated built-in wide-beam optics disperse light in the near field and transition beautifully with the spot beam.
HIGH PERFORMANCE - ACCESSIBLE PRICE.
The 7" Type-X™ Sport; our most affordable driving light yet, with the inherented STEDI™ ability to deliver a high-performance and high-quality driving illuminance. Simply look at the build quality and performance of other offerings on the market and you will be convinced that the 7" Type-X™ Sport remains untouched.
THE NERDY DETAILS
- Thick 304 Series Stainless Mounting bracket, which includes rubber dampener and an additional 3mm upper plate.
- A360.0 Cast Housing | Boasting superior strength and corrosion resistance.
- Thick GE Lexan Lens with hard coating | Virtually unbreakable & scratch resistant
- 100% Polyester UV and abrasion resistant powder coat
- IP68 | Dust & Particle tight + Water-proof up to 3 meters
- Nitto Denko Pressure Equalization vent with membrane | Protects against water ingress, dust and contaminants.
- Environmentally Sealed Deutsch DT-2 connector
- EMI RFI Suppression circuitry - We guarantee it.
- Each 7" TYPE-X Sport comprises 32 of OSRAM's OSLON LEDs, selected for its high luminous flux and perfectly matches optical properties.
- 4 wide-beam reflectors built-in, which form a lateral shaped flood pattern designed to minimize valuable light wasted up to the sky.
- 5700K CCT offers stunning clarity and definition with excellent Color Rendering Index (CRI)
|LED||32 x Osram Oslon SSL|
|RAW LUMENS||16,640 (Pair)|
|TESTED LUMENS||12,820 (Pair)|
|AMP DRAW||6.4A @ 13.2v (each)|
|POWER DRAW||85W (each)|
|BEAM PATTERN||4 x Spread 28 x Spot Beam|
|INGRESS PROTECTION||IP68 | Submersible up to 3m (10 feet)|
|COLOR TEMP (CCT)||5700K|
|VOLTAGE COMPATIBILITY||12v & 24v|
|LUMEN MAINTENANCE||50,000 LM-80|
|OPERATING TEMP||-38°F - 140°F|
|10 m||8,129 L|
|50 m||327 Lx|
|200 m||20 Lx|
|300 m||9 Lx|
|400 m||5 Lx|
- 2 x STEDI 7" TYPE-X Sport
- 2 x STEDI Black Out Covers
- 1 x Easy Fit High Beam Wiring with DT-2 Sealed Connectors, H4, HB3 Adapter plugs to high beam. 60A Relay, Fuse, Switch
- 3 Series Stainless Steel Nuts and Bolts
- Rubber Shock Dampener
- Wiring Instructions
