ABOUT THE STEDI TYPE X™ SPORT
We welcome the all-new Type-X Sport – Our most affordable driving light yet. Our very existence as a brand is to offer high-performance, high-quality driving lights at accessible prices. Compare build quality, performance, and list of inclusion with other offerings on the market and you will conclude that our Type-X Sport is peerless. (Registered Design Number 201914860 & Registered Trademark).
Three years since the inception of original Type-X, we’ve taken an already proven platform and completely redesigned it from the ground up. All-new reflector geometry, all-new LEDs, and all-new housing. We’ve increased the depth of the optics by 35% allowing for a perfectly collimated beam and the resultant increase in light intensity. The beam diameter strikes a sublime balance between width and throw and will send light right out to 1,050m. Four dedicated built-in wide-beam optics disperse light in the nearfield, and transition beautifully with the spot beam.
WHATS IN THE BOX
2 x STEDI TYPE-X Sport
2 x STEDI Black Out Covers
1 x Easy Fit High Beam Wiring with DTP-2 Sealed Connectors
H4 + HB3 Adapter plugs to high beam
60A Relay, Fuse, Switch
3 Series Stainless Steel Nuts and Bolts
Rubber Shock Dampener
Wiring Instructions
KEY SPECIFICATIONS
LED: 36 x Osram Oslon SSL
Raw Lumens: 20,780 (Pair)
Tested Lumens: 14,950 (Pair)
Amp Draw: 9.8A @ 13.2v (each)
Power Draw: 129W
Candela: 1,102,500cd
Beam Pattern: 4 x spread, 32 x Spot Beam
Ingress Protection: IP68 | Submersible up to 3m
Colour Temp (CCT): 5700K
Voltage Compatibility: 12v & 24v
Lumen Maintenance: 50,000 LM-80
Weight: 3.35kg (each)
Photometric Data:
- 10 M | 11,025Lx
- 50 M | 441Lx
- 200 M | 27Lx
- 300 M | 12Lx
- 400 M | 6Lx
- 1,000 M | 1.1Lx
- 1,050 M | 1Lx

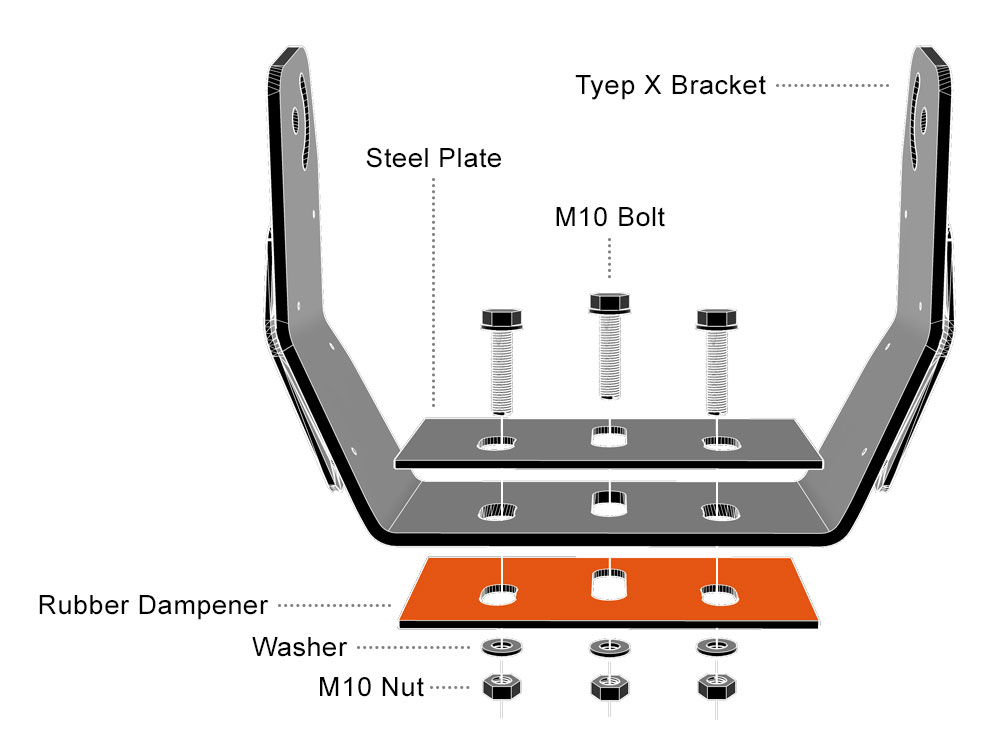

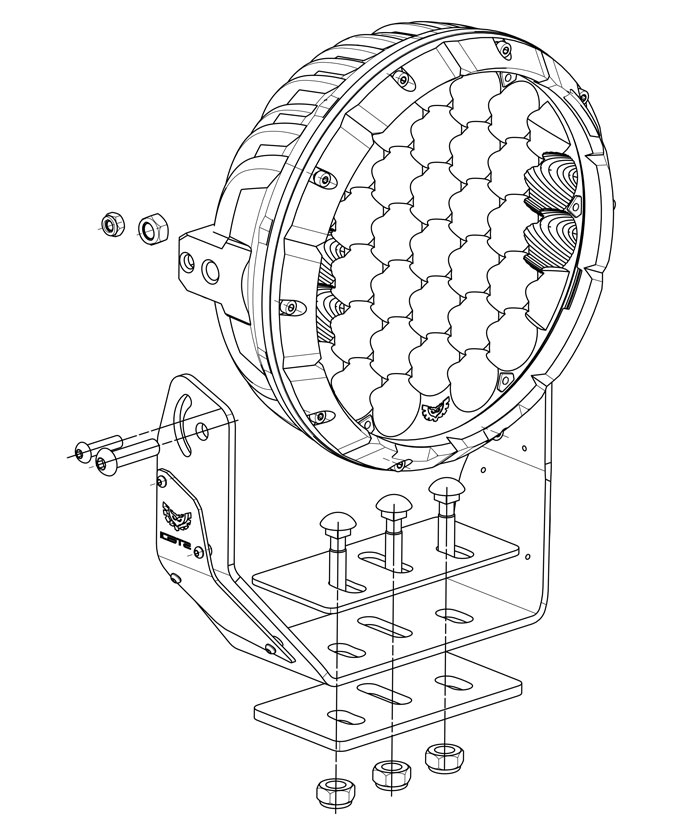

EXPLODED DIAGRAM
The installation of the Type X Sport follows very similar to the rest of the range of Type X Lights, very simple and best explained using the below exploded diagram. Most will find it easier to set up the bracket first and once fitted, install the lights.
For wiring instructions, Click Here.
