The QUAD EVO’s aesthetic adaptation features a sleek, organic silhouette that reflects the contemporary grilled designs of today. Like the Type-X™ EVO driving lights, the QUAD EVO has been carefully engineered to achieve an optimal balance between aesthetics and performance, all while maintaining a compact profile that distinguishes itself from other offerings in the market.
THE REVEAL.
DESIGN

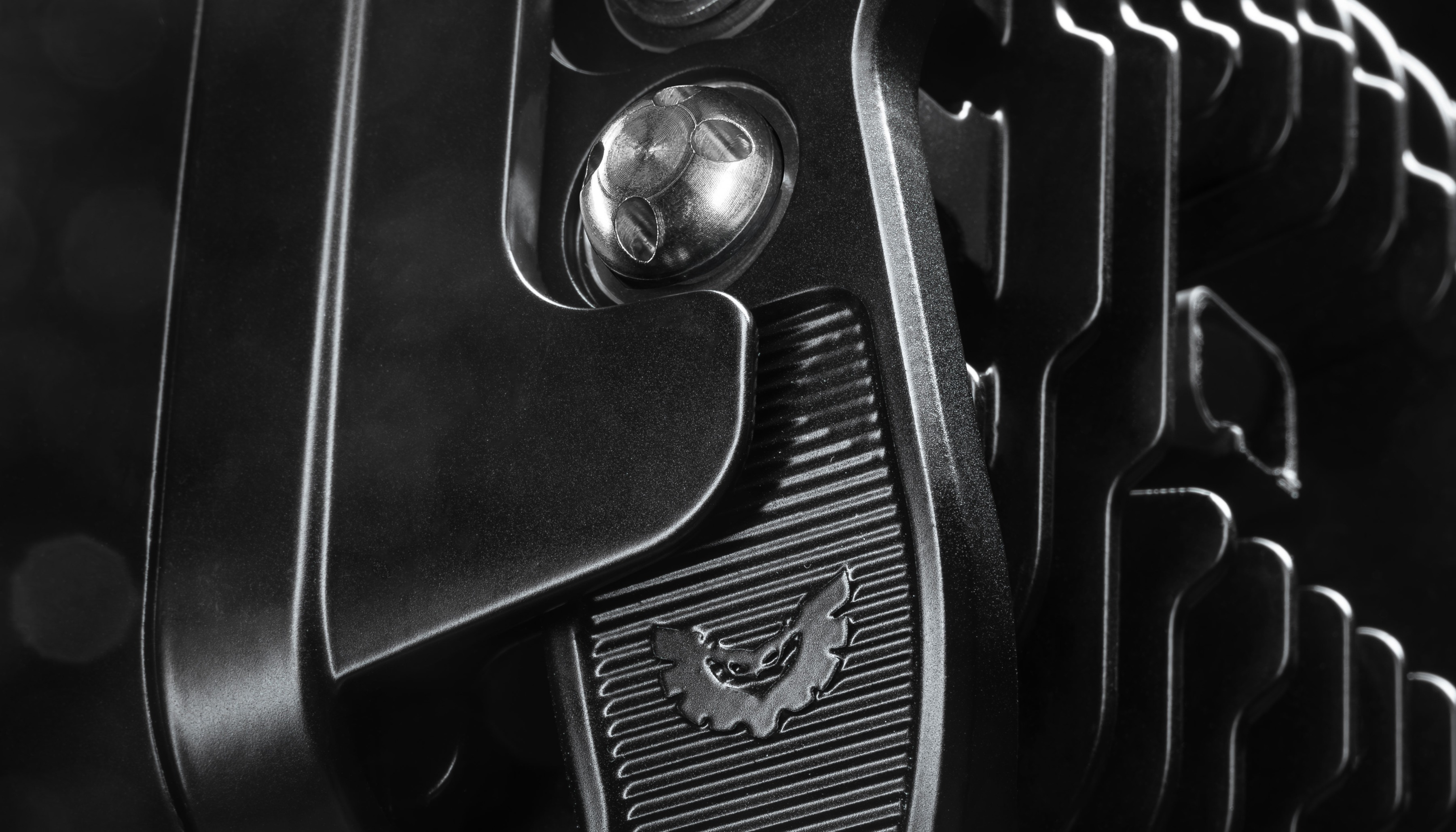

Both the QUAD EVO centre and QUAD EVO side light embody the EVO aesthetics, characterised by low profile mounting brackets, minimal exposed hardware, and an engaging visual depth, created by lenses, fascia and covers. This design approach has also enabled our engineers to integrate our innovative snap-fit solution covers, as seen in previous EVO driving lights, enhancing both functionality and style. While the overall depth of QUAD EVO has increased in comparison to its predecessor, the light unit is positioned further forward, facilitating easier installation on modern bull bars. As a result, the overall footprint of the QUAD EVO is comparable to that of the QUAD PRO.
PERFORMANCE
Beyond aesthetic appeal, the QUAD EVO excels in performance, establishing itself as a top-tier driving light within its category. Exceptional qualities are often inherited, and QUAD EVO embodies this principle through its innovative design and advanced functionality with not only an impressive beam throw, but through the introduction of widespread reflectors. This transforms the typical limitations associated with driving lights of this size into unparalleled strengths.

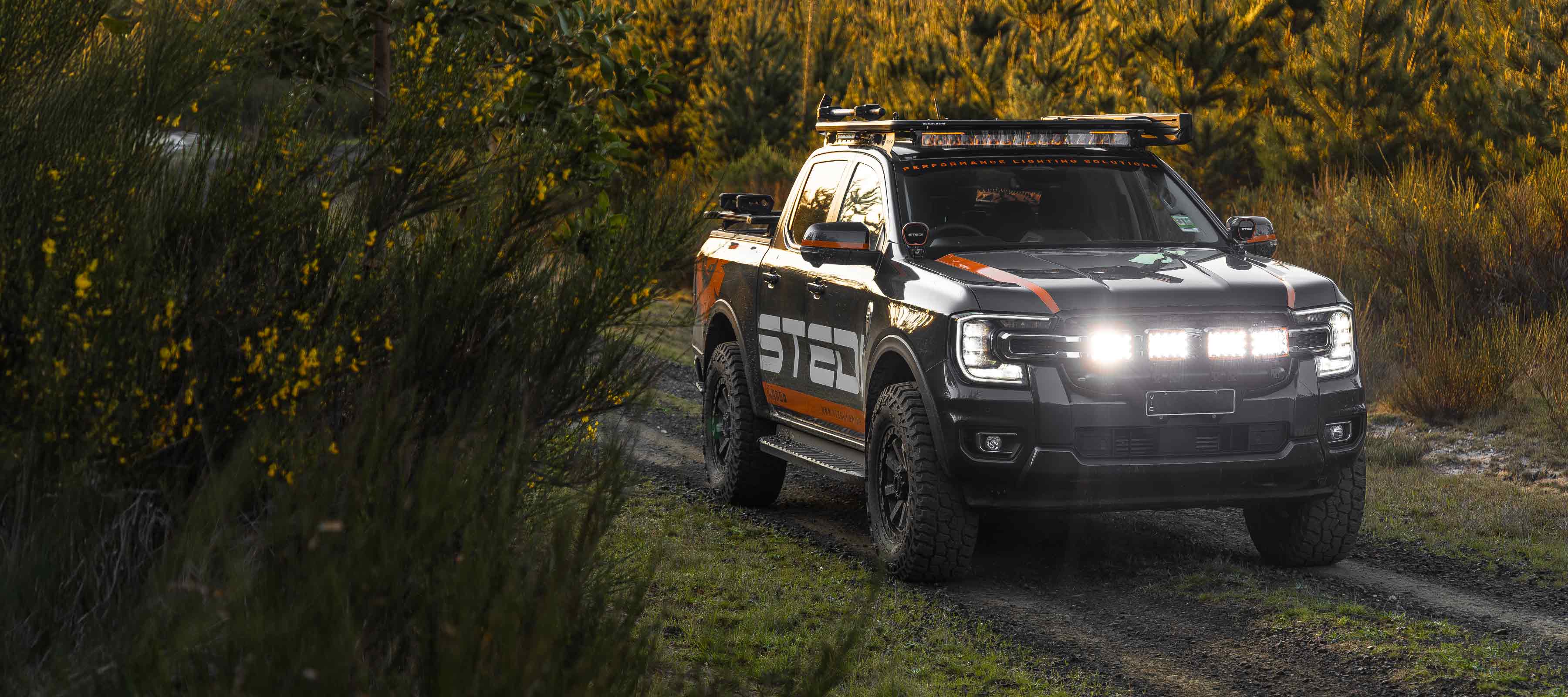

For optimal reach and distribution, employing 2x QUAD EVO centre lights with 2x QUAD EVO side lights achieves a remarkable range of up to 1015 meters at 1 lux (effective), delivering an exceptional 210-degree illumination spread. We guarantee you will be impressed.

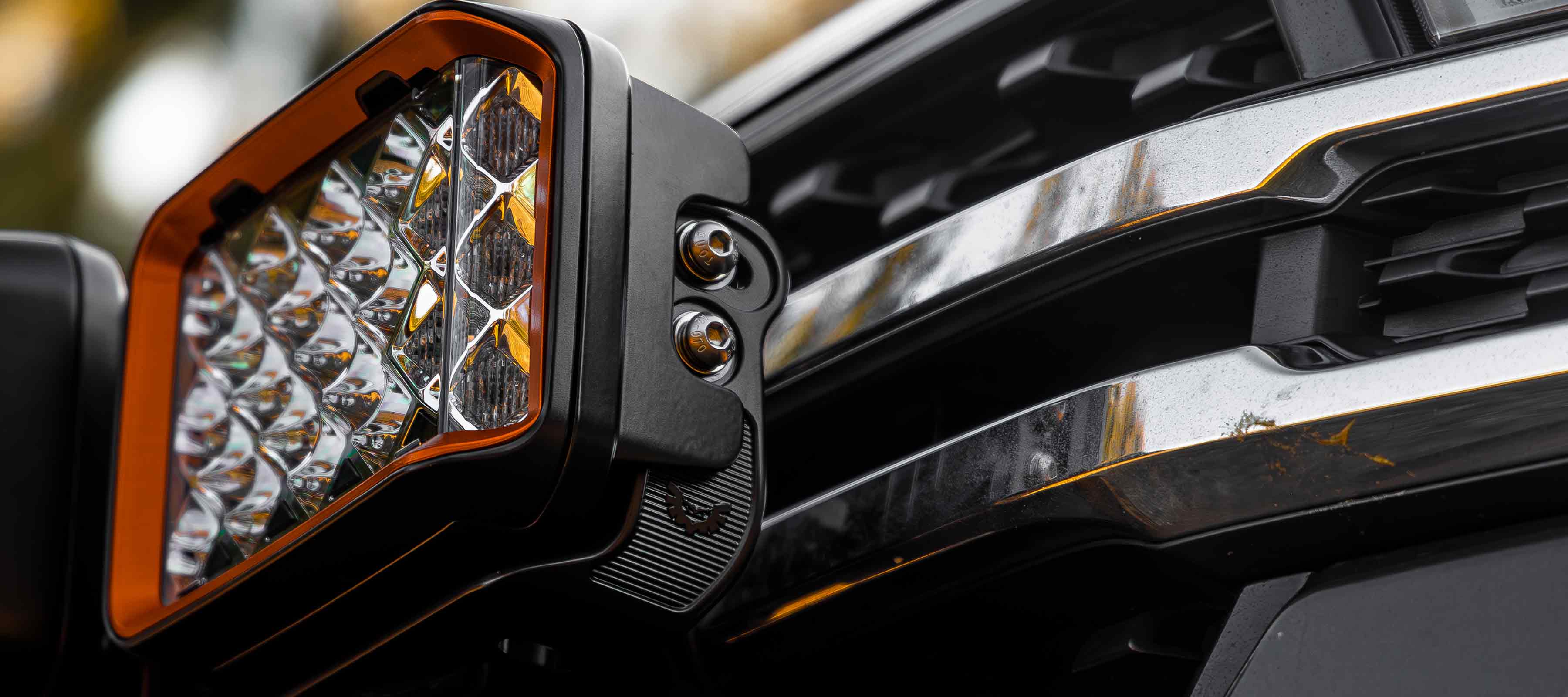

Additionally, 2x QUAD EVO side driving lights produces an impressive 578 meters at 1 lux (effective), utilising 36 spot and flood reflectors in conjunction with 10 widespread reflectors.

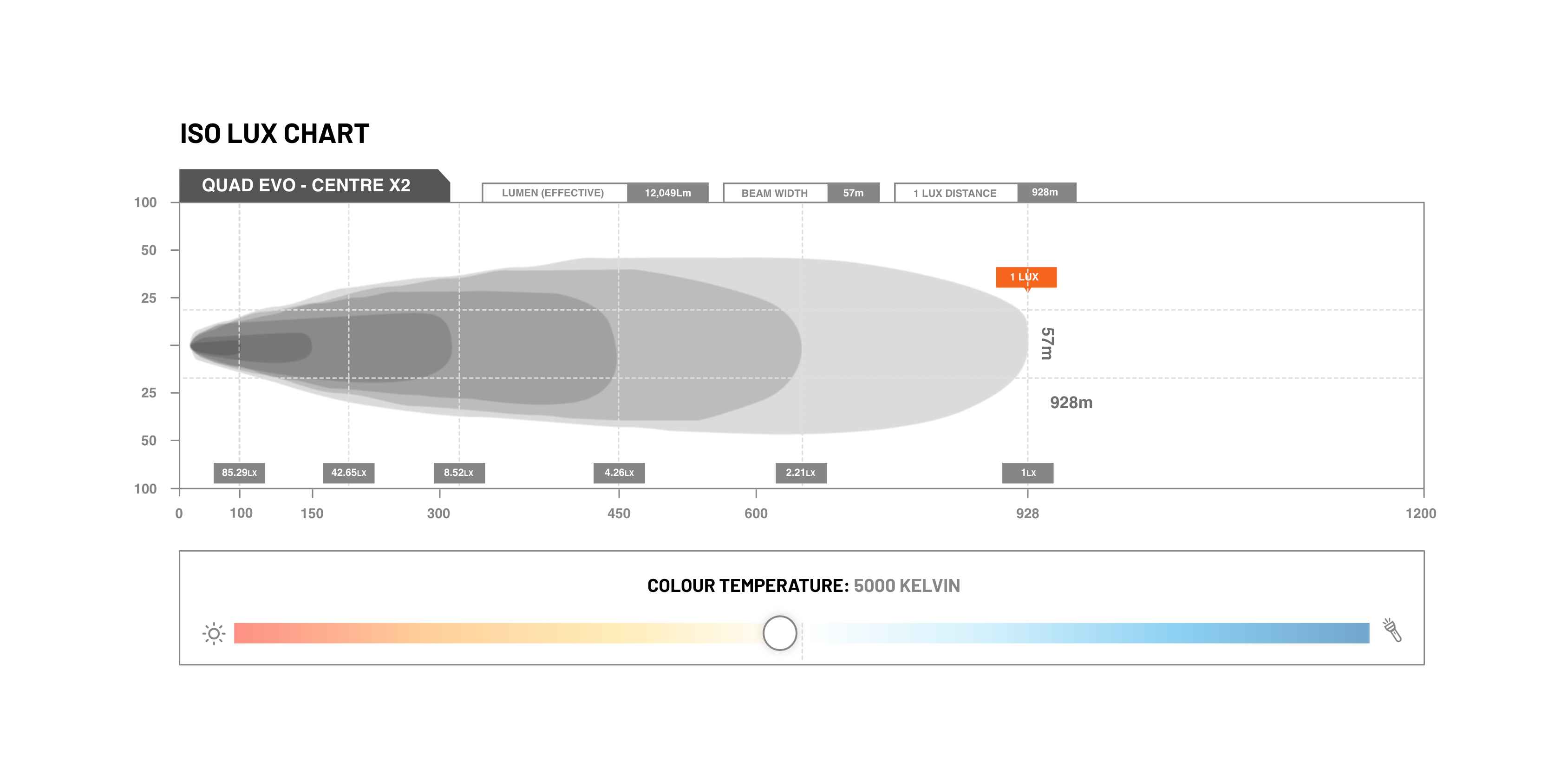

LUX GRAPH CENTRE
LUX GRAPH SIDE

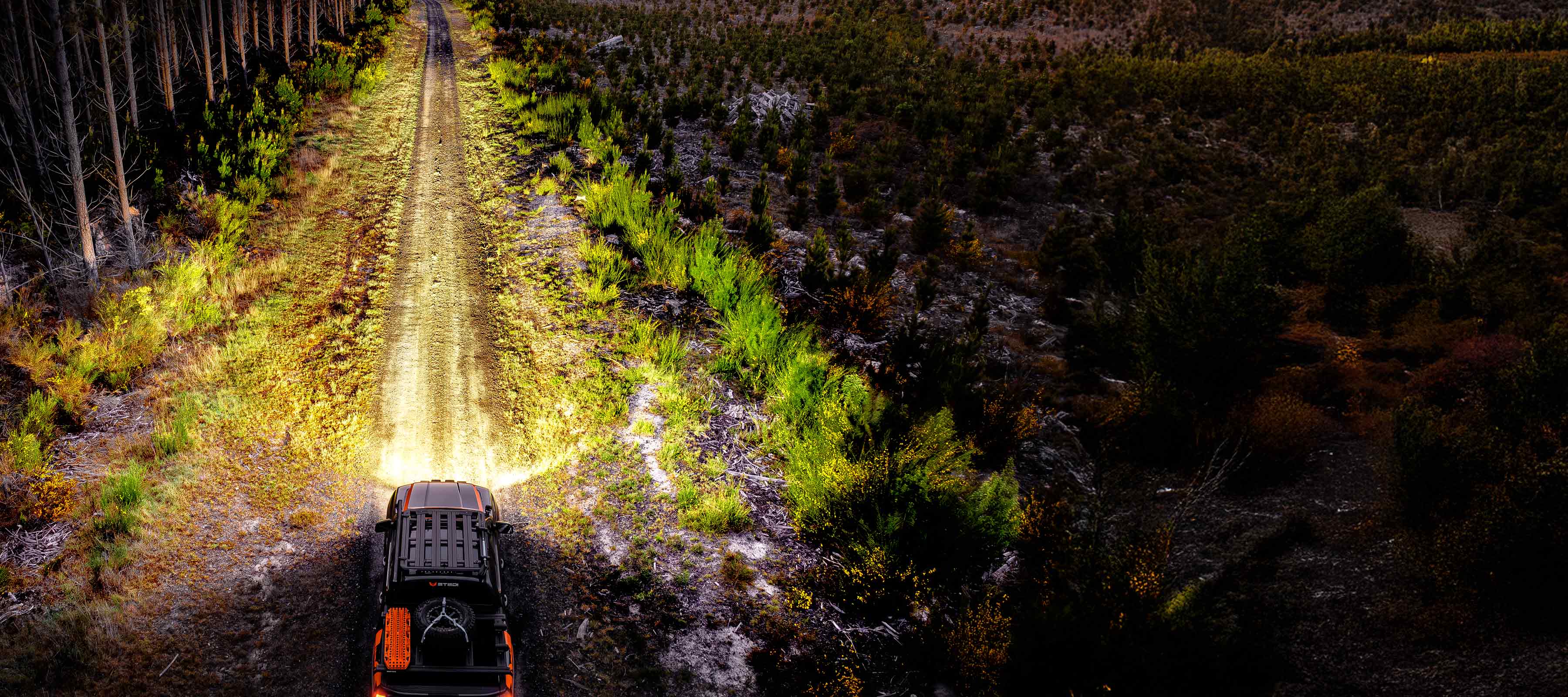

So why introduce a wide beam? Well, wide beam angle driving lights are designed to project illumination over a broader area, effectively lighting not only the road directly ahead but also the surrounding peripheral critical zones. This enhanced visibility enables drivers to identify potential hazards that might otherwise go unnoticed. Beyond wildlife, the wider beam assists in detecting various roadside obstacles and facilitates early recognition of potential dangers.
Moreover, wide beam lights significantly improve visibility in adverse weather conditions, such as rain and snow. As a result, the QUAD EVO positions itself as a leader within its class of driving lights. In accordance with the EVO series, the QUAD EVO renders a 5000 Kelvin colour temperature, which light output, whilst promoting a soft and consistent lighting output to reduce eye fatigue.
If you are not sold on performance or aesthetics, both QUAD EVO centre lights and QUAD EVO side lights offer IP68 rating for both water, dust and mud resilience (submersible up to 3m), so even in the harsher 4x4 terrains you know that these lights will be able to withstand all your outdoor adventures. In addition, each light will offer a lifespan of up to 30,000* hours at operational temperatures of -40℃ to 60℃ and has been engineered with Aluminium ADC12 raw material (housing).
DRIVING LIGHT FOOTAGE.
FITMENT

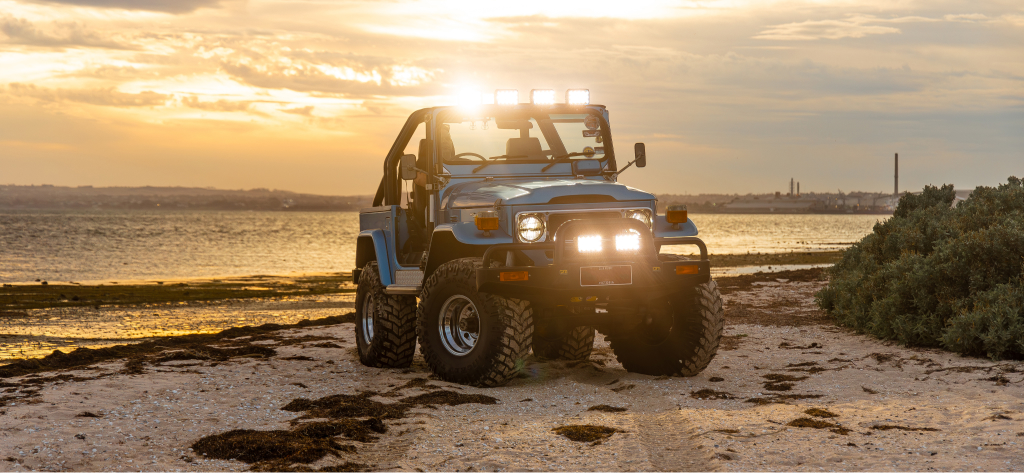

One of the prominent features QUAD EVO brings forth is the reconfigured bracket system that provides a variety of mounting solutions. Our team of designers and engineers curated thoughtful design that embraces signature EVO aesthetics and applied it to the QUAD EVO design housing, offering a minimal and sleek, less obstructive mounting solution. This refined bracket adaption will see QUAD EVO as a perfect driving light for modern bull bars with minimal mounting clearances and perfect for a roof rack array and additionally be a potential candidate for smaller off-roading vehicles like ATV’s.

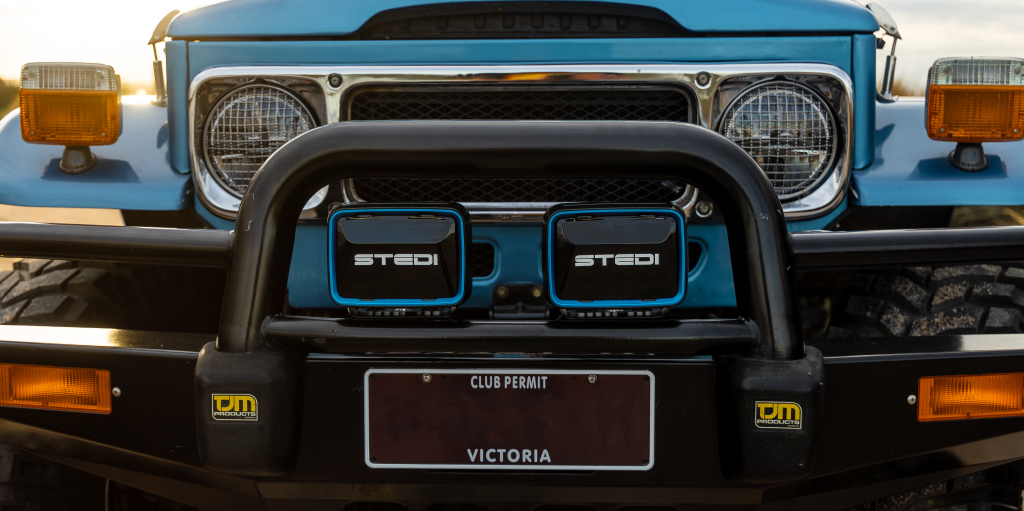

QUAD EVO can be perfectly mounted on the STEDI™ Rally Bar, an unobtrusive front mounting bracket and tube, designed specific for a variety of vehicles.
For Vehicle Specific Rally Bars Click Here
INSTALLATION GUIDE
CUSTOMISATION.
COLOUR FASCIA RINGS
The brushed stainless colour fascia that you may have seen in our Type-X™ EVO LED Driving Lights have been brought across to QUAD EVO. A selection of curated colours have been selected to cater to a wider range of modern vehicles whilst allowing matching standards to our existing line-up, for consistency of course. Each colour way will be available for both QUAD EVO centre light and QUAD EVO side light.
BLACKOUT/FILTER COVERS.

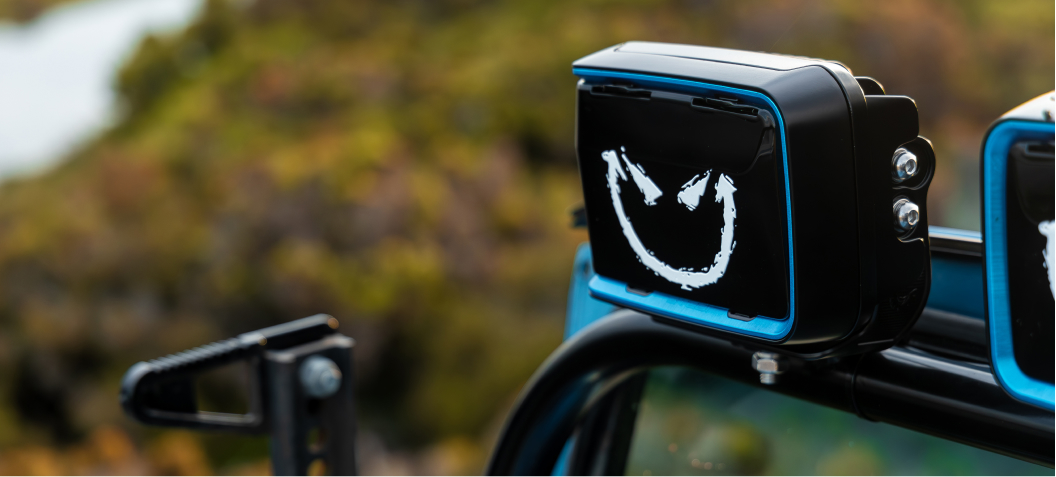

Just like many of our other driving lights, customisation with covers is where we allow customers to show their individuality. All the usual suspects are back, with designs ranging from Smiley, Owl to Amber, and Clear Lens’. When we talk accessories, QUAD EVO centre light out of the box will come with 1x STEDI™ Black Out Cover, whilst QUAD EVO side light comes with 2x STEDI™ Black Out Covers (L+R).
Included with each individual QUAD EVO light is our STEDI™ custom key that effortlessly removes each colour fascia, whilst conveniently doubling as a bottle opener. You know we had to also include a STEDI™ branded patch. Thank us later.
Whilst driving light covers are often designed for aesthetic or functional purposes, they also play a crucial role in adhering to road compliance regulations. For instance, in Australia, having more than four driving lights makes a vehicle unroadworthy; by covering a light it is excluded from this count. Similarly, in the EU and USA, regulations require all auxiliary lights to be covered when driving on sealed roads.
For more information on ADR regulations, click here.
ANTI-THEFT KIT.

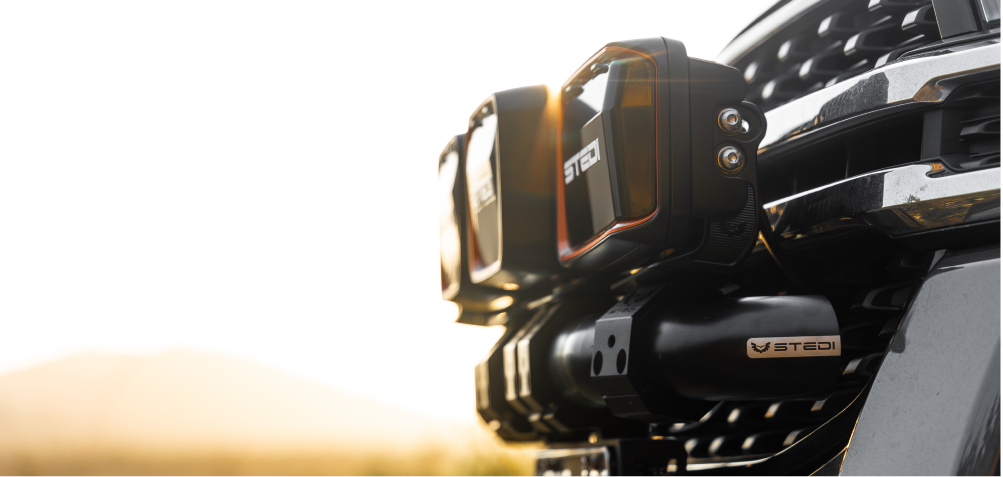

It’s true, our QUAD EVO driving lights are highly sought, luckily, we have designed an Anti-Theft Kit to keep your spotlights safe and deter would be thieves.
THE NITTY-GRITTY.
Unboxing
WHAT'S IN THE BOX
Upon unboxing the QUAD EVO, you’ll quickly become acquainted with all the required mounting hardware and wiring that is needed for initial installation. The stainless steel mounting bracket and polycarbonate lens material ensure durability and longevity. In support of mounting versatility, QUAD EVO centre light and side light are packaged with rubber dampener. This is to be installed underneath each mounting bracket to aid with absorbing any chaotic vibration, commonly seen on rough corrugated plains or heavy-duty off-roading conditions.
Quad EVO Center Module
- (User Selected) 1 - 3 x Quad EVO LED Driving Lights (Center)
- 1 x Protective STEDI™ Black Out Cover
- 1 x Grey Color Fascia
- 1 x Orange Color Fascia
- 1 x EVO Fascia Key & Key Chain
- 1 x Bracket & Stainless Steel Fastener Kit
- 1 x QR Code Fitting Instructions
Quad EVO Side Module
- (User Selected) 1 - 3 x Quad EVO LED Driving Lights (Side)
- 1 x Protective STEDI™ Black Out Cover (L)
- 1 x Protective STEDI™ Black Out Cover (R)
- 1 x Grey Color Fascia (L)
- 1 x Grey Color Fascia (R)
- 1 x Orange Color Fascia (L)
- 1 x Orange Color Fascia (R)
- 1 x EVO Fascia Key & Key Chain
- 1 x Bracket & Stainless Steel Fastener Kit
- 1 x QR Code Fitting Instructions
KEY SPECIFICATIONS
QUAD EVO CENTER MODULE |
|
LED | 23 x CREE XP20 |
RAW LUMENS | 22,080 (pair) |
TESTED LUMENS | 6,159lm (single) | 12,049lm (pair) |
AMP DRAW | 6A (pair) @12V |
POWER DRAW | 144W (pair) |
CANDELA | 856,695 (pair) |
LUX | 928 m (pair) |
BEAM PATTERN |
Combo Beam (Flood, Spot & Widespread) |
INGRESS PROTECTION | IP68 | Submersible up to 3m |
COLOUR TEMP (CCT) | 5000K |
LUMEN MAINTENANCE | 30,000 LM-80 |
VOLTAGE COMPATIBILITY | 10v & 30v |
WEIGHT | 2.11kg (each) |
OPERATING TEMPERATURE | -40°C to 60°C |
QUAD EVO SIDE MODULE |
|
LED | 18 x CREE XP20 + 5 x Widespread (each) |
RAW LUMENS | 22,080 (pair) |
TESTED LUMENS | 5,885lm (each) 11,726lm (pair) |
AMP DRAW | 6A (pair) @12V |
POWER DRAW | 144W (pair) |
CANDELA | 856,695 (pair) |
LUX | 578 m (pair) |
BEAM PATTERN |
Combo Beam 210° Widespread |
INGRESS PROTECTION | IP68 | Submersible up to 3m |
COLOUR TEMP (CCT) | 5000K |
LUMEN MAINTENANCE | 30,000 LM-80 |
VOLTAGE COMPATIBILITY | 10v - 30v |
WEIGHT | 2.35kg (each) |
OPERATING TEMPERATURE | -40°C to 60°C |
