Toyota Hilux N80 Upgrade Guide

If you drive the current generation N80 Toyota Hilux, then we've got you covered with a comprehensive interior and exterior LED upgrade (including high beam, low beam, fog lights, parkers, brake/tail, reverse, and interior).  You can order your Hilux LED upgrades through our vehicle selector. Simply select Hilux, drill down to the year range, and select the trim level which will bring up all of the current confirmed LED upgrades for your Hilux. Some models like the SR5 in the N80 are factory fitted with an LED low beam but retain a halogen on the high beam.







TOYOTA HILUX (N80) | HIGH BEAM LED UPGRADE

It sucks that Toyota has equipped the SR5 with a factory LED low beam but left the high beam as the awful yellow halogen. Don't stress we've got the perfect upgrade! Not only is the Hilux LED high beam upgrade a perfect color match to the factory LED low beam, but it also yields a massive performance increase. Take a look at the difference in LUX readings below. Installation can be done in under 10 minutes and is completely plug & play - Check out our LED Head Light Installation Guide to give you an idea of what is involved.

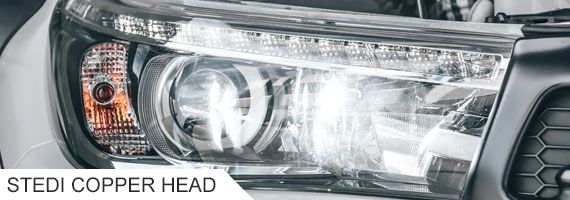

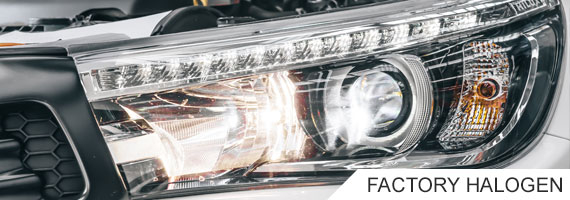

As shown below, the improvement in light intensity is dramatic. More importantly, the beam geometry and overall light distribution are identical to the halogen headlamp.



The Light Meter echos the massive gains visible to the eye. A whopping 66% net increase in Lux. Keep in mind that a standard halogen HB3 bulb on average will typically, push out between 800 to 850 Lumens, while our HB3 LED Copper Head is pushing out 1,760 Lumens. To sum it up that is a 48% increase in volume and a 66% increase in Lux.

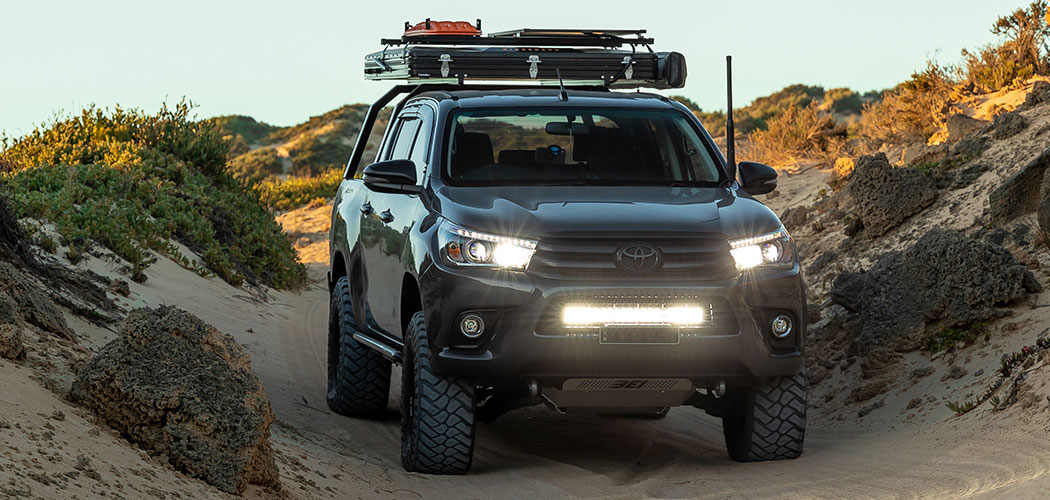

TOYOTA HILUX (N80) | INNER GRILLE BRACKET







TOYOTA HILUX (N80) | FOG LIGHT LED UPGRADE

Now you've upgraded your high beam and your OCD can't see past the yellow fog lamps. We've got two options for you here.

OPTION 1: The cheapest and easiest option, is to retrofit our LED Fog Light upgrade bulb.

OPTION 2: A  complete plug-and-play bolt-on fog light housing swap out using our TYPE-B LED  Fog Lights. This is the preferred option as you get the slick look of blackout fog housing along with a mega-wide high-performance fog light beam.

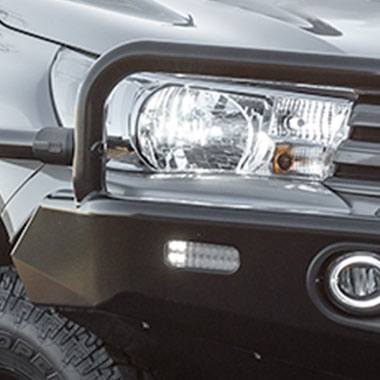

TOYOTA HILUX (N80) | PARKING LIGHT LED UPGRADE

Upgrading the parker globes from halogen to LED is a very straightforward process. It follows the same process as swapping out a globe for a replacement halogen; only this time, it's an LED. No heat sinks to spread out, driver modules, etc.. simply plug & play as you would a normal globe and you're good to go.

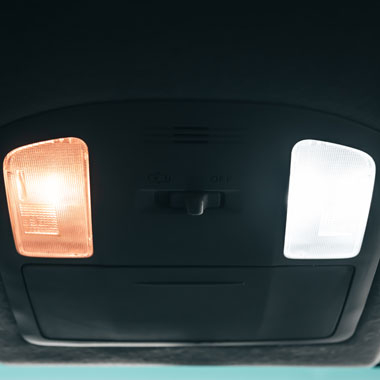

TOYOTA HILUX (N80) | MAP LIGHT LED UPGRADE

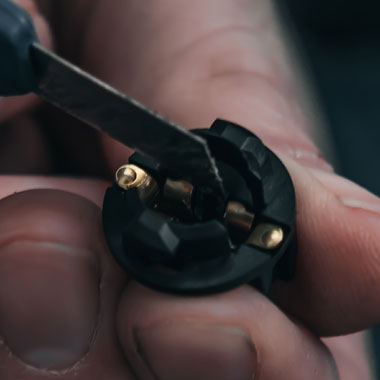

The interior map light for the N80 Hilux does require minor modification. Once you remove the bulb holders (located on each side of the unit), you will see 2 small tabs (located in between the metal pin connectors), that obstruct the installation of our T10 LEDs. These tabs just need to be removed. This can be done using a small blade or knife to just shave them back to allow access.





TOYOTA HILUX (N80) | REVERSE LIGHT LED UPGRADE

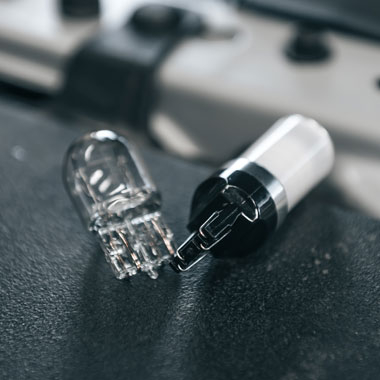

New to our range of LED conversion kits are the 1000-lumen high-output globes (available in T10/15, T20, and BA15S). Compared to our other conversion globes they offer a much brighter illumination with a slightly different installation method. A good customer has thrown together a short video briefly describing the installation as well as giving quite a useful comparison between the factory halogen globes.

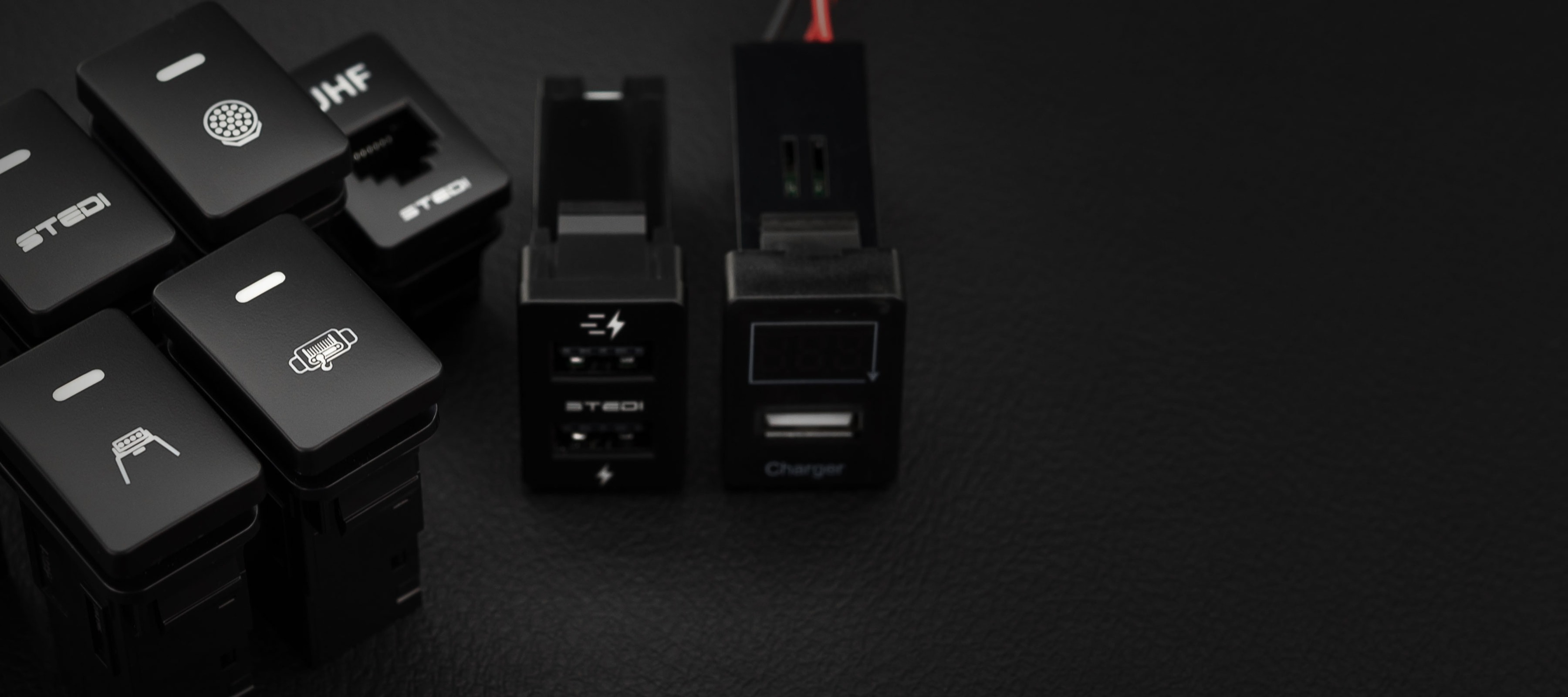

TOYOTA HILUX (N80) | PUSH BUTTON SWITCHES

The N80 Toyota Hilux is fitted with the Short Type push button switches to suit Toyota.  The icons below show what prints are available. Please note that the images below will be our future range, so use the swatch as an accurate reference to the print you will receive.
