INTERIOR / EXTERIOR LED CONVERSION BUYERS GUIDE
This guide is designed to help with the variations of globe types found throughout a vehicle's interior & exterior. To find suitable LED globes for your vehicle, we suggest the below link to our vehicle selector. If you have already drilled through and the information was not available, continue through this blog and we can help you identify the different globe types.
WEDGE TYPE GLOBES
The wedge type globes are definitely, from our experience anyway, the most common globe found throughout the majority of vehicles. Below is a brief run through the differences in size, function, and compatibility.

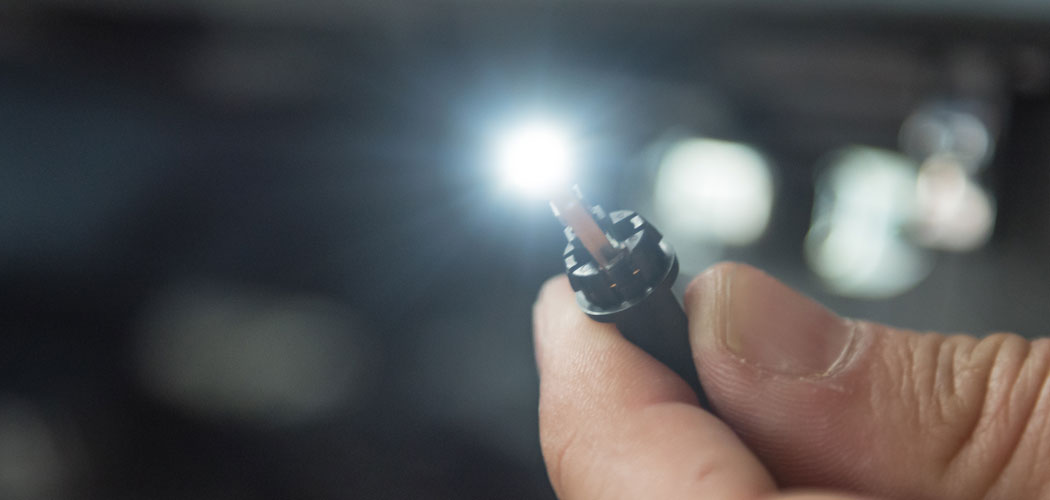

T5 LED GLOBES
The T5 is the smallest of the bunch, commonly found in dash clusters and ashtrays. T5 globes are only fitted with a single LED due to their small size and generally limited by the required application leaving almost no room to increase in size over a halogen bulb.
CROSS REFERENCE (T5)
3.4w, 286, w2.3w, PC74, 12516

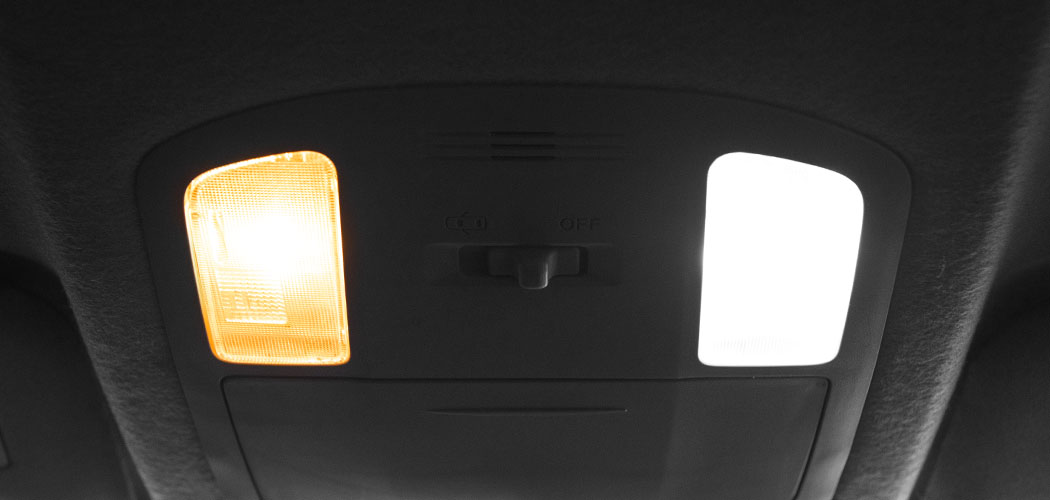

T10/T15 LED GLOBES
One of the most common globes found around the vehicle whether it be interior or exterior. The T10 also suits T15 sockets as they use the exact same connector with the difference being the physical head size.
CROSS REFERENCE (T10/T15)
147, 152, 158, 159, 161, 168, 184, 192, 193, 194, 259, 280, 285, 447, 464, 501, 555, 558, 585, 906, 912, T12, T13, T15, W3W, W5W, W10W, W16W
ALTERNATIVE BULB TYPES
WR5W (RED) / WY5W (YELLOW)

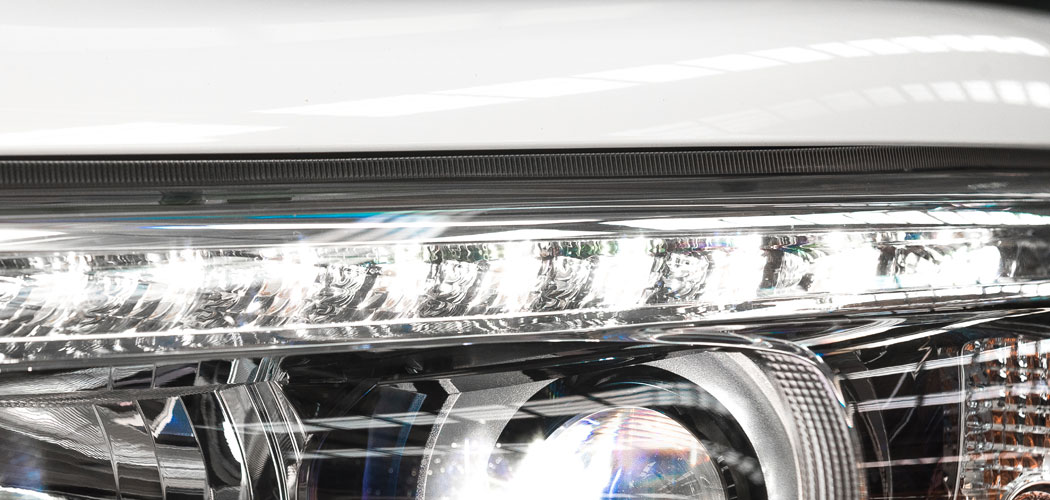

T20 LED GLOBES
In the case of T20 globes, they can be found in two different filament types. 7440 which is a single filament generally used for parkers and reverse lights. Alternatively, the 7443 dual filament has a full and half brightness mode meaning applications such as taillights that also second as a brake light in one housing are possible.
Due to the locations of the pins, the 7443 (dual filament) is compatible with both 7440 & 7443 sockets whereas the 7440 (single filament) will only suit 7440 sockets.
CROSS REFERENCE (T20)
7440: W21W
7443: 3057, 3157, 3457, 4057, 4114, 4157, P27/7W, W21/5W
NOTE: We only offer the T20 Dual (7443) as it is suitable for both fittings.
BAYONET TYPE GLOBES
Bayonet style globes (excluding the BA9s) are similar in the sense of function as compared to T20, a single and dual function. The difference however is that the fitment is in no way cross compatible as the locating pins between the different styles are generally offset from model to model.

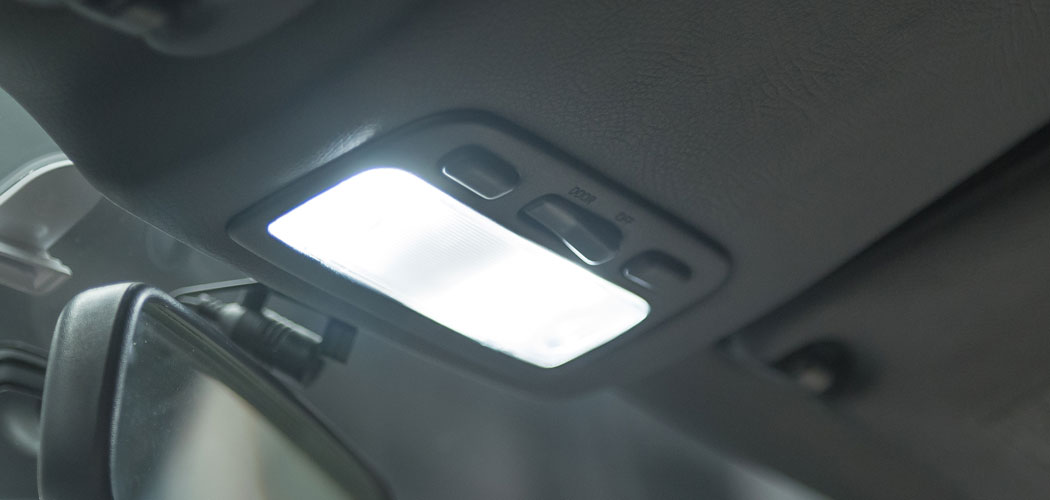

BA9S LED GLOBES
With an application list as broad as the T10 but found not quite as often, BA9s globes are generally found in parkers, map/dome, courtesy, trunk, vanity, and many more.
CROSS REFERENCE (BA9S)
53 / 57 / 182 / 257 / 363 / 1445 / 1488 / 1813 / 1815 / 1816 / 1889 / 1891 / 1892 / 1893 / 6253 / 6411 / 1895 / 1898 / H21W / T4W
ALTERNATIVE BULB TYPES
HY21W (AMBER)

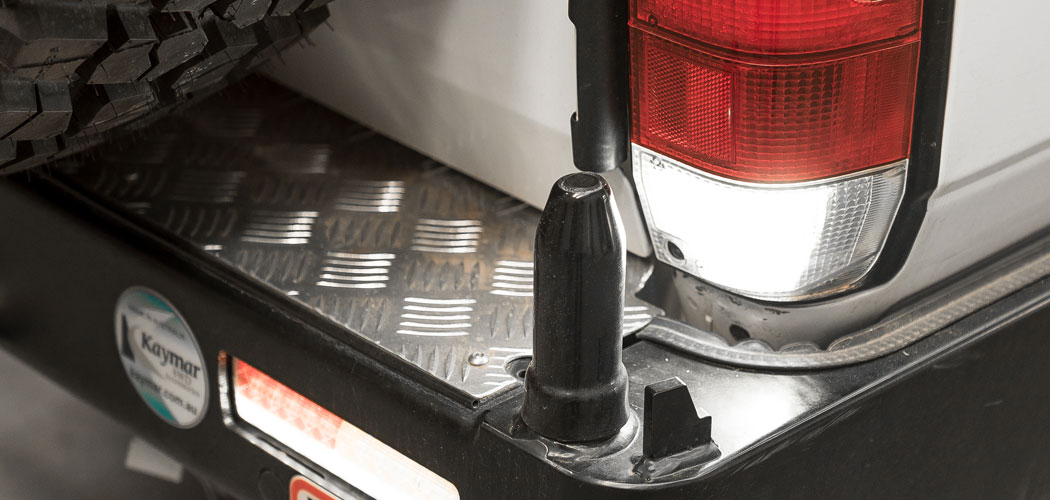

BA15S LED GLOBES
These globes are single filament with a single point of contact at the base with the 2 locating pins directly parallel to one another. Used for reverse, parker, and single function tail or brake lights.
CROSS REFERENCE (BA15S)
67, 97, 105, 1003, 1073, 1093, 1129, 1141, 1156, 1159, 1295, 1459, 1619, 1651, 1680, 3497, 5007, 5008, 7506, 7527, 12821, 12814, P21W, RW5, R10W
NOT COMPATIBLE
PR21W or BAW15S (RED) / PY21W or BAU15S (AMBER)

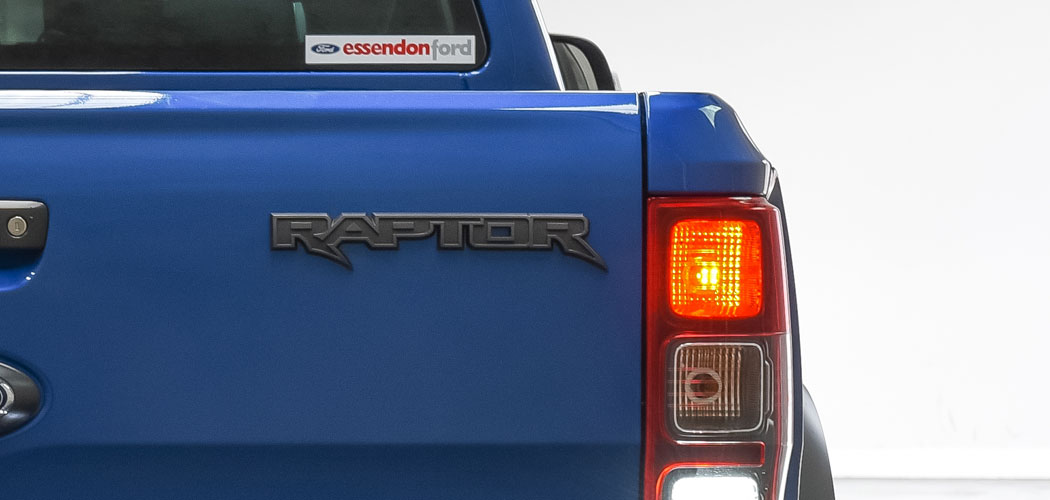

BAY15D LED GLOBES
The BAY15D is a dual filament, half brightness, and full brightness mode with offset locating pins in terms of height. Most commonly found in brake/tail lights.
CROSS REFERENCE (BAY15D)
1016, 1034, 1076, 1130, 1154, 1157, 1158, 1493, 2057, 2357, 2397, 3496, 7225, 7528, P21/5W
NOT COMPATIBLE
BAZ15D (Offset Tabs) / BA15D

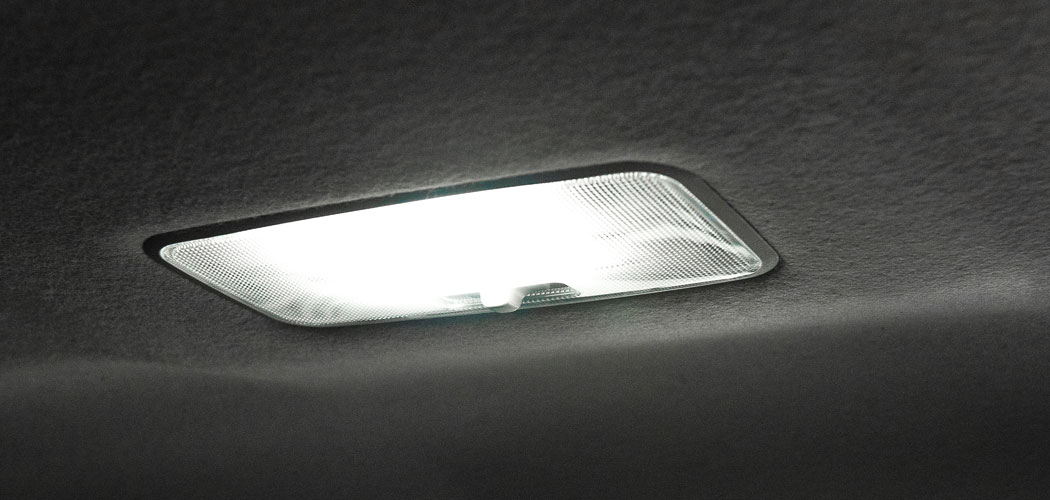

FESTOON GLOBES
Festoon globes are ideally an interior globe used for dome, vanity, courtesy, and on the very rare case, license plate lights. We cover the 4 most common sizes 28mm, 31mm, 36mm & 42mm as well as a more recent addition 561/562 Capless.
CROSS REFERENCE
28mm:
31mm: 1-1/4", 3012, 3022, 3175, 6428, 6428, 6430, C5W, DE3021, DE3022, DE3175, 3175
36mm: 1-3/8", 3423, 3425, 6411, 6418, 6461, 6423, 6486X, 7456, 12844, DE3423, DE3425
41mm: 1-3/4", 211, 212-2, 214-2, 578, 6413, 6429, 4410, 578
Capless Festoon: 561, 562
